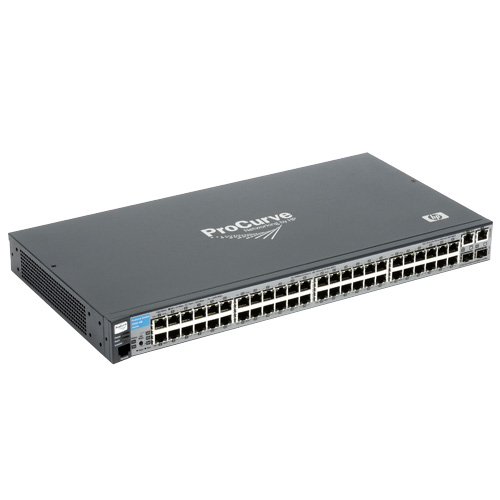

Svič HP ProCurve 2510-48 managed L2 48xFastEth 2Gb/mGbic, J9020A
Proizvođač:
Učitavanje podataka je u toku ...
|
Cena:
(bez PDV-a): 55.335 din
(sa PDV-om): 65.296 din
ProCurve 2510 serije svičeva dizajnirane su da obezbede osnovno povezivanje za potrebe manjih poslovnih mreža.
-
Portovi:
- 48 RJ-45 auto-sensing 10/100 porta (IEEE 802.3 Type
10Base-T, IEEE 802.3u Type 100Base-TX); Media type: ProCurve Auto-MDIX;
Duplex: half or full
- 2 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3
Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type
1000Base-T); Media type: IEEE Auto-MDI/MDIX; Duplex: 10Base-T/100Base-TX:
half or full; 1000Base-T: full only
- 2 open mini-GBIC (SFP) slota
- 1 RJ-45 serial console port
-
Fizičke dimenzije:
- Dimenzije: 23.62 x 44.25 x 4.39 cm, 1U height
- Težina: 2,74 kg
-
Memorija i procesor:
- Procesor: MIPS
32 @ 300 MHz, buffer 1MB
- Flash memorija: 16 MB
- SDRAM mamorija: 128 MB
- Montiranje: EIA-standardni 19 inčni telco rack
ili ekvivalentni (uključen prateći pribor), moguće samo horizontalno
postavljanje
-
Performanse:
- Latency:
- 100 Mb latency: <4.9 μs
(64-byte packets)
- 1000 Mb latency: <2.9 μs (64-byte packets)
- Throughput: do 13
million pps (64-byte packets)
- Switching kapacitet: 17,6 Gbps
- Veličina table MAC adresa: 8.000 ulazaka
-
Radni uslovi:
- Temperatura: 0°C do 40°C
- Vlažnost: 15% do 95%
- Visina: do 4,6 km
- Nivo buke: napajanje: 43,6 dB
-
Električne karakteristike:
- Zagrevanje okoline: 97 kJ/hr (92 BTU/hr)
- Voltaža: 100–127 VAC/200–240 VAC
- Snaga: 27 W
- Frekvencija: 50/60 Hz
-
Zaštita
okoline: cUL (CSA 22.2 No. 60950); UL
60950-1; IEC 60950; EN 60950
-
Menadžment: ProCurve Manager Plus; ProCurve
Manager; command-line interface; Web browser; out-of-band management
-
Standardi i protokoli:
- Sigurnost: IEEE 802.1X Port Based Network Access,
Control, RFC 1492 TACACS+, RFC 2138 RADIUS Authentication, RFC 2866
RADIUS Accounting, Secure Sockets Layer (SSL), SSHv1/SSHv2 Secure Shell
- Protokoli: IEEE 802.1p Priority, IEEE 802.1Q VLANs,
IEEE 802.1s Multiple Spanning Trees, IEEE 802.3ad Link Aggregation
Control Protocol, (LACP), IEEE 802.3x Flow Control, RFC 768 UDP, RFC 783
TFTP Protocol (revision 2), RFC 792 ICMP, RFC 793 TCP, RFC 826 ARP, RFC
854 TELNET, RFC 951 BOOTP, RFC 1542 BOOTP Extensions, RFC 2030 Simple
Network Time Protocol, (SNTP) v4
Garancija: 3 godine
|
|
Vrsta uređaja
|
Svič
|
|
Broj mrežnih priključaka
|
48
|
|
Napajanje
|
US+EU
|
|
Dimenzije
|
23.62 x 44.25 x 4.39 cm
|
|
Tip i broj interfejsa
|
* 48 RJ-45 auto-sensing 10/100 porta (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX); Media type: ProCurve Auto-MDIX; Duplex: half or full
* 2 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Media type: IEEE Auto-MDI/MDIX; Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
* 2 open mini-GBIC (SFP) slota
* 1 RJ-45 serial console port
|
|
